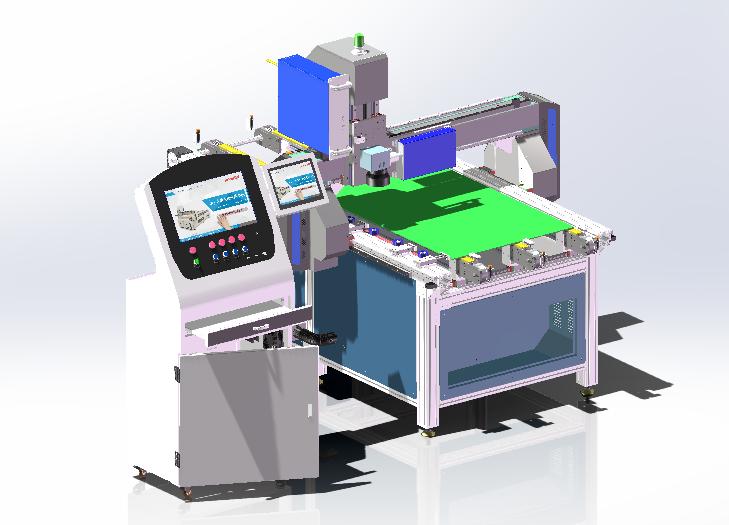

Glass Laser Continuous Drilling Machine
Fully automatic MOPA pulsed laser drilling for high-volume, continuous production
Round, oblong, square, special-shaped, tapered and micro holes
Glass drilling thickness 1 – 15 mm
Drilling diameter 1 – 65 mm (customizable up to 1 – 100 mm)
Processing range customized to customer requirements
Built around a high-power MOPA pulsed laser, the machine offers fast processing speed, high precision, flexible processing methods, and high stability. It works without water, leaves clean hole walls, causes minimal damage, and produces very little edge chipping.
The machine is configured to your production needs: optional configurations include loading/unloading robot arms, a conveyor platform, a CCD vision system, a rotary axis, and an XY motion platform — making it suitable for fully automatic, continuous drilling lines.
High Drilling Precision
Drilling precision up to 0.1 mm (actual precision depends on real-world cutting results).
Configurable to Your Needs
Optional loading/unloading robot arms, conveyor platform, CCD vision system, rotary axis, and XY motion platform.
Excellent Equipment Stability
Suitable for high-volume, stable production with high consistency.
Excellent Drilling Results
Edge-chipping performance is far superior to traditional mechanical drilling.
Diverse Process Capabilities
Processes round holes, oblong holes, square holes, special-shaped holes, tapered holes, micro holes, and more.
Fast Processing Speed
Overall processing speed is 5–10 times that of traditional CNC machining.
Technical Specifications
- Processing range
- Customized to customer requirements
- Glass drilling thickness
- 1 – 15 mm
- Drilling diameter
- 1 – 65 mm (customizable up to 1 – 100 mm)
Laser System (1 laser included)
- Laser type
- High-power MOPA pulsed fiber laser
- Model
- NFL-GH
- Laser power
- 140 W / 200 W
- Center wavelength
- 1055 – 1070 nm
- Beam diameter
- 7 ± 1 mm
- Pulse width
- 4 – 50 ns
- Repetition rate
- 5 – 3000 kHz
- Power stability (@48 h)
- < 3 %
- Ovality
- ≥ 90 %
Digital Drilling Galvo Parameters (1 galvo module included)
- Beam pointing drift
- < 20 μrad/°C
- Incident spot size
- < 12 mm
- Expanded spot size
- < 11 mm
- Scanning depth
- ±10 mm
- Max positioning processing range
- D ≤ 100 mm
- Linearity
- > 99.9 %
- Scanning angle
- ±0.35 rad
- X/Y axis tracking time
- 0.15 ms
- Marking speed
- < 8,000 mm/s
- Z-axis repeat positioning accuracy
- < 1 μm
- Power supply
- ±24 V / 10 A
- Mirror reflection wavelength
- 1064 nm
Software System (1 set included)
- Control functions
- Laser energy, frequency, and pulse-width adjustment with storage
- Computer
- Standard 4U industrial chassis with 300 W ATX industrial power supply
Electrical Section
- Control panel functions
- Main power switch, start button, emergency stop switch
- Exhaust
- Built-in dust extraction fan
Installation Environment
- Input power
- Single-phase 220 V AC, 50 Hz, 15 A
- Temperature & humidity
- 25 °C ± 1 °C, 60 %
- Total power consumption
- 4.5 kW
Accessories
- Laser water chiller
- 1 unit
- Fume extractor
- 1 set
