Glass laser drilling machine
High-power MOPA pulsed fiber laser for fast, precise and clean glass drilling
Round, oblong, square and special-shaped holes
Tapered holes and micro holes
Drilling diameter from 1 to 65 mm
Glass thickness from 1 to 15 mm
Utilizes a MOPA high-power pulsed laser, featuring fast processing speed, high precision, flexible processing methods, and high stability. Offers advantages such as no water contamination, clean inner walls, low damage, and small edge chipping.
Drilling precision up to 0.1mm with edge chipping performance significantly better than traditional mechanical drilling. Suitable for high-volume, stable processing with high consistency.
Overall processing speed is 5–10 times faster than traditional CNC machining, making it the ideal choice for demanding production environments.
Compact Workstation Design

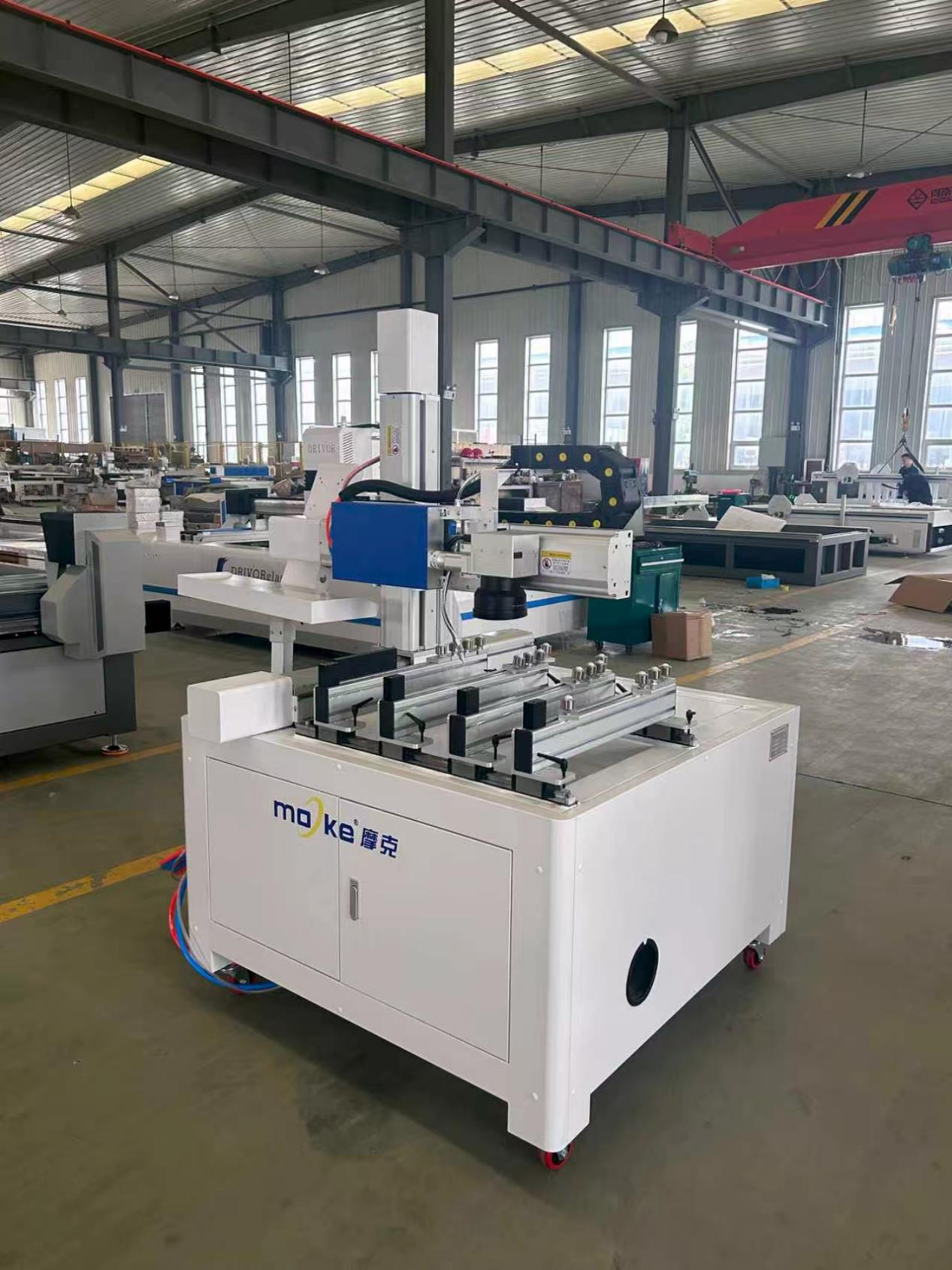

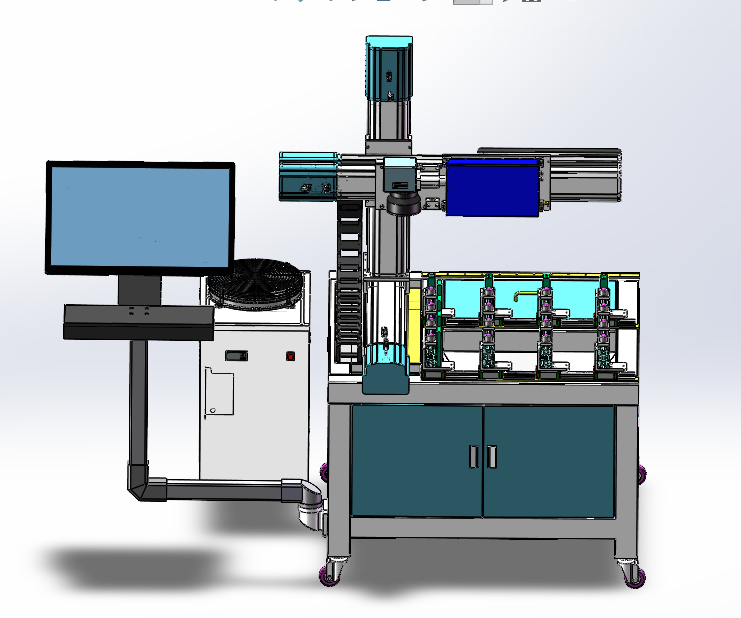

The complete system integrates the laser source, digital drilling galvo, positioning platform and control computer into a compact workstation with a 500 × 500 mm processing range.
Engineered for Integration

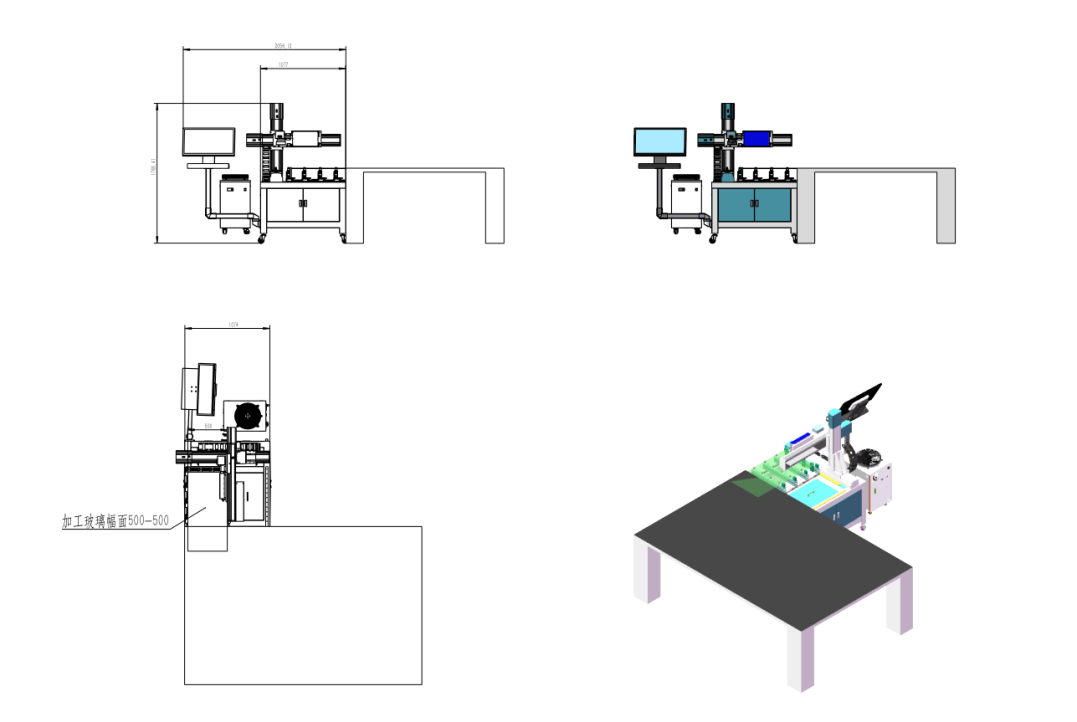

Detailed technical drawings show the machine footprint from every angle, making it easy to plan installation alongside existing production lines and worktables.
High Drilling Precision
Drilling precision up to 0.1mm (actual precision depends on actual cutting results).
Good Equipment Stability
Suitable for high-volume, stable processing with high consistency.
Good Drilling Results
Edge chipping performance is significantly better than traditional mechanical drilling.
Diverse Process Capabilities
Processes round holes, oblong holes, square holes, special-shaped holes, tapered holes, and micro holes.
Fast Processing Speed
Overall processing speed is 5–10 times faster than traditional CNC machining.
Clean Processing
No water contamination, clean inner walls, low damage, and small edge chipping.
Technical Specifications
- Processing Range
- 500 × 500 mm
- Glass Thickness
- 1 - 15 mm
- Drilling Diameter
- 1 - 65 mm
- Laser Type
- High-power MOPA Pulsed Fiber Laser
- Model
- NFL-GH
- Laser Power
- 140 W
- Center Wavelength
- 1055 - 1070 nm
- Beam Diameter
- 7 ± 1 mm
- Pulse Width
- 4 - 50 ns
- Repetition Rate
- 5 - 3000 kHz
- Power Stability (@48H)
- < 3%
- Ovality
- ≥ 90%
- Beam Pointing Drift
- < 20 μrad/℃
- Incident Spot Size
- < 12 mm
- Expanded Spot Size
- < 11 mm
- Scanning Depth
- ±10 mm
- Max Positioning Processing Range
- D ≤ 100 mm
- Linearity
- > 99.9%
- Scanning Angle
- ±0.35 rad
- X/Y Axis Tracking Time
- 0.15 ms
- Marking Speed
- < 8000 mm/s
- Mirror Reflection Wavelength
- 1064 nm
- Control Functions
- Laser energy, frequency, pulse width adjustment & storage
- Computer
- Standard 4U industrial chassis, 300W ATX power supply
- Control Panel Functions
- Power switch, start button, emergency stop
- Exhaust System
- Built-in dust suction fan
- Power Supply
- Single-phase 220V AC, 50Hz, 15A
- Temp. & Humidity
- 25℃ ± 1℃, 60%
- Total Power Consumption
- 4.5 kW
- Accessories
- Laser Chiller, Dust Collector
