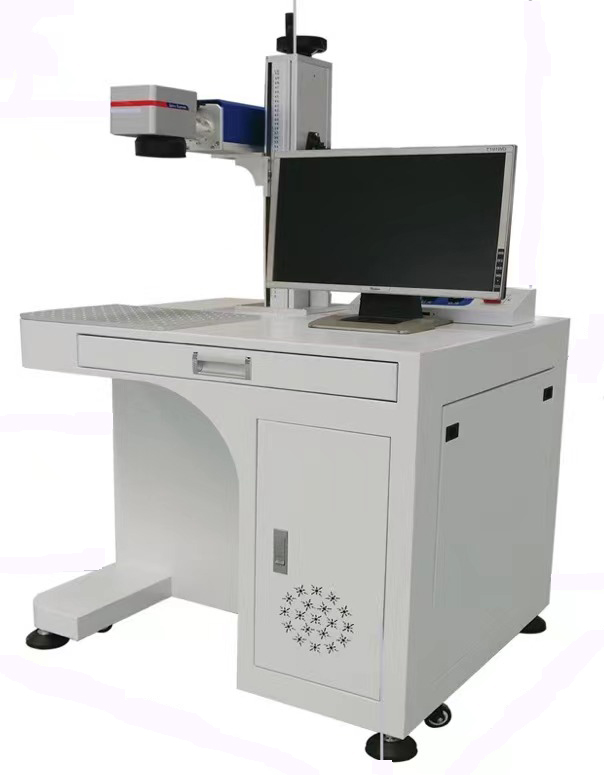

UV Laser Marking Machine
Mark at ±0.002 mm: finer, cleaner and more permanent than inkjet coding, with no ink and no waste.
Marking speed up to 8,000 mm/s
Rated laser life 8,000 hours
Work area 70 × 70 mm
A 355 nm UV beam focuses to an extremely small spot, keeping mechanical deformation and heat impact to a minimum.
One machine marks packaging, electronics, semiconductor components and glass alike.
The UV laser marking machine is built around a 355 nm ultraviolet laser using third-order intracavity frequency-tripling technology. Compared with infrared lasers, the 355 nm UV beam focuses to an extremely small spot, greatly reducing mechanical deformation of the material and keeping the heat-affected zone to a minimum.
With its low-power, finely focused beam, the machine is particularly suited to the high-end ultra-fine processing market: marks on polymer packaging are fine, clear, and permanent, outperforming inkjet coding and producing no pollution. It also handles coated metal surfaces, plastic buttons, electronic components, gifts, communication equipment, building materials, and more.

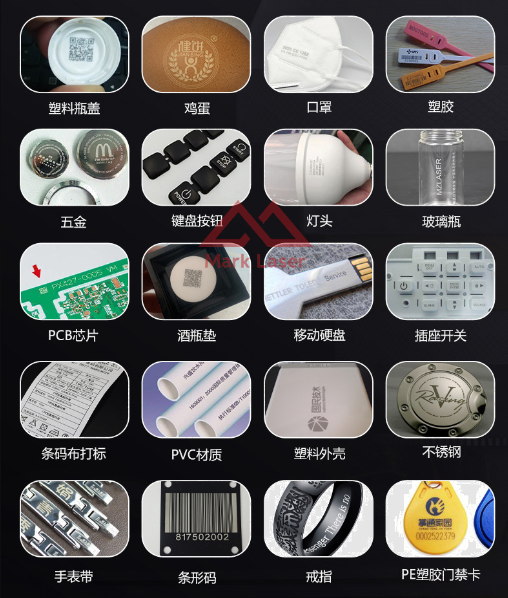

Application Fields
Packaging
Surface marking of packaging bottles for cosmetics, pharmaceuticals, food, and other polymer materials.
Electronics & PCBs
Marking and scribing of flexible PCBs, plastic buttons, electronic components, and communication equipment.
Semiconductors & Displays
Micro-hole and blind-hole drilling in silicon wafers and QR-code marking on LCD glass.
Glass, Metal & More
Hole drilling in glassware surfaces, marking of coated metal surfaces, gifts, and building materials.
355 nm UV Laser
Third-order intracavity frequency-tripling technology focuses to an extremely small spot for ultra-fine processing.
Minimal Heat-Affected Zone
The finely focused, low-power beam greatly reduces mechanical deformation and keeps thermal impact to a minimum.
Permanent, Clean Marks
Fine, clear, and permanent marks that outperform inkjet coding and produce no pollution.
High Precision
Laser repetition accuracy of ≤ ±0.002 mm and mechanical repetition accuracy of ≤ ±0.02 mm.
Fast Marking Speed
Marking line speed up to 8,000 mm/s for efficient production.
Precision Motion System
Beijing JCZ laser control system combined with a high-precision servo motor system.
Technical Specifications
- Machine model
- C05/10
- Working mode
- UV laser
- Working size
- 70 × 70 × 3 mm
- Footprint
- 900 × 900 × 700 mm
- Weight
- 80 kg
Technical Parameters
- Total power
- 1 kW
- Laser type
- UV laser
- Laser power
- 5 W / 10 W
- Theoretical laser lifespan
- 8,000 hours
- Laser wavelength
- 355 nm
- Marking range
- 70 × 70 mm
- Mechanical repetition accuracy
- ≤ ±0.02 mm
- Laser repetition accuracy
- ≤ ±0.002 mm
- Marking line speed
- ≤ 8,000 mm/s
- Motion system
- Beijing JCZ laser control system + high-precision servo motor system
- Fume extraction
- Direct duct exhaust

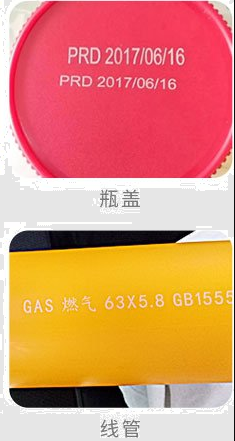

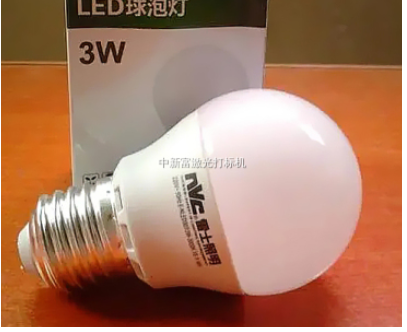

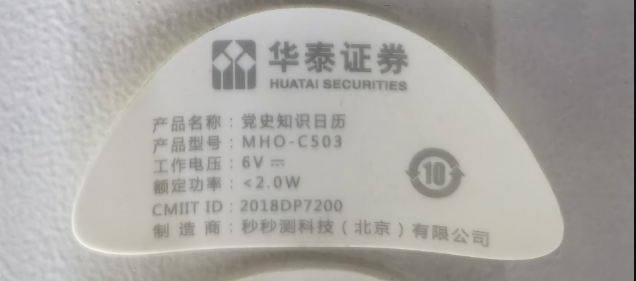

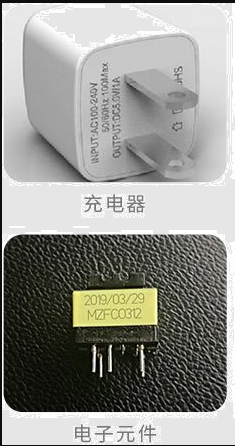

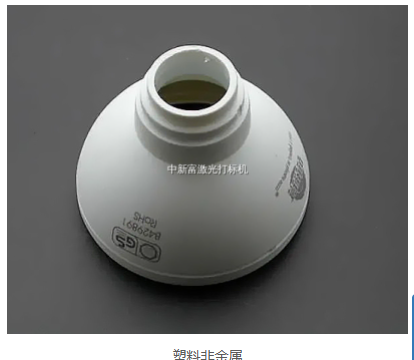

Sample Photos
