CF1530 Laser Sandblasting Machine with Loading Arm
Frosting, back-paint removal and drilling on 1500 × 3000 mm sheets, with single-operator loading
Working size 1500 × 3000 mm, material thickness up to 50 mm
Sandblasting width up to 160 mm per pass
Drilling field up to 150 × 150 mm; round, tapered, stepped and special-shape holes
Glass and mirrors; surface marking on stainless steel, anodised aluminium and copper alloys
The CF1530 is a high-speed, high-precision laser sandblasting machine developed for the smart-mirror industry. Besides mirror frosting it handles paint stripping, coating removal and drilling on other glass, and surface marking on stainless steel, anodised aluminium and copper alloys.

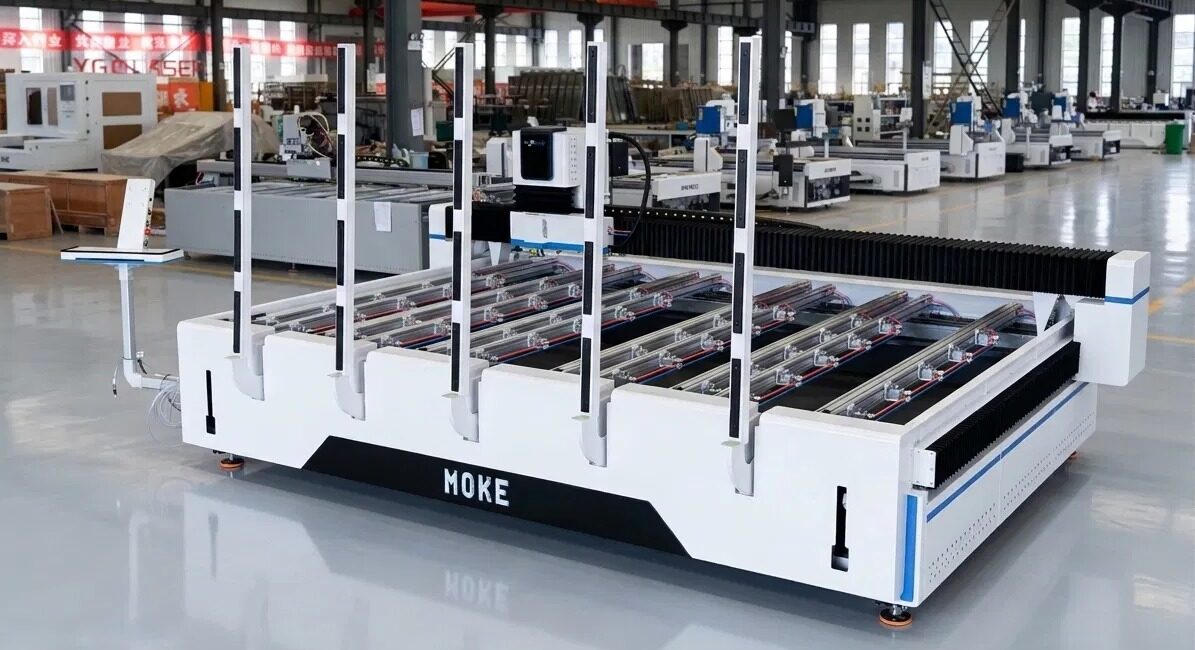

A pneumatic loading arm and cylinder lift pins let one operator load and position full-size sheets.
Key features
Syntec 730SA-PLUS CNC control system (Taiwan)
Easy to operate. Sandblasting including special shapes, drilling (tapered, stepped and special-shape holes) and coating removal (mirror paint, coated glass, home-appliance glass).
Low edge chipping
Edge chipping on drilled holes below 400 µm; below 300 µm on small holes.
12 mm-aperture galvo + telecentric lens
High-speed, high-precision 12 mm-aperture quartz galvo head with a telecentric quartz field lens.
140 W MOPA fibre laser
MOKE custom high-peak MOPA laser: good beam, stable power, low attenuation, long life.
Dual-temperature chiller

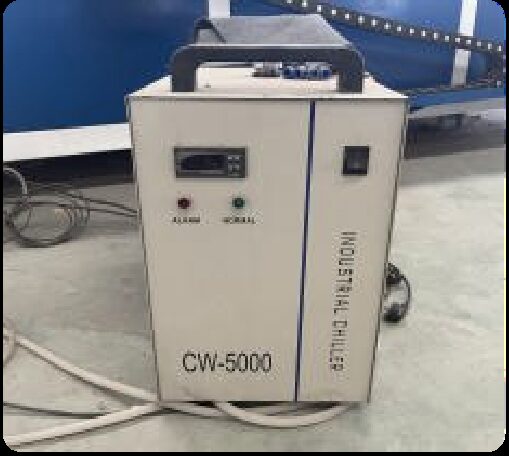

Two independent cooling circuits keep the laser at the right temperature for long shifts.
Rigid, stress-relieved frame
Welded steel frame, annealed and finished on a 5-axis CNC mill; aluminium gantry beam.
AirTAC guides, 1.5-module rack
Dust-proof AirTAC linear guides; custom 1400 mm high-precision 1.5-module rack.
Servo drive
High-precision servo motors: high torque, small transmission error, good dynamics.
Automatic Z-axis
Large-stroke automatic Z-axis for different thicknesses and materials.
Open-grid table with travelling dust extraction

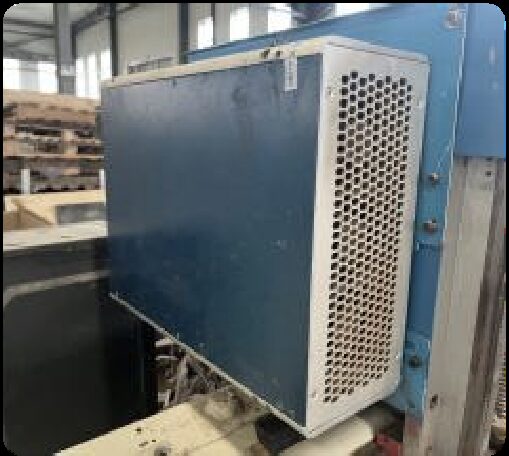

Dust is extracted under the laser head as it moves, keeping the work area clean.
Processing capability
- Max. sandblasting width 160 mm per pass
- Max. drilling field 150 × 150 mm
Applications
Smart mirrors
Frosting and back-paint removal for lit and smart mirrors.
Decorative glass
Art glass, sliding-door glass and deep-frosted patterns.
Coated glass
Coating removal on coated and home-appliance glass.
Drilling and marking
Round, tapered, stepped and special-shape holes; surface marking on stainless steel, anodised aluminium and copper alloys.
Loading arm and lift pins

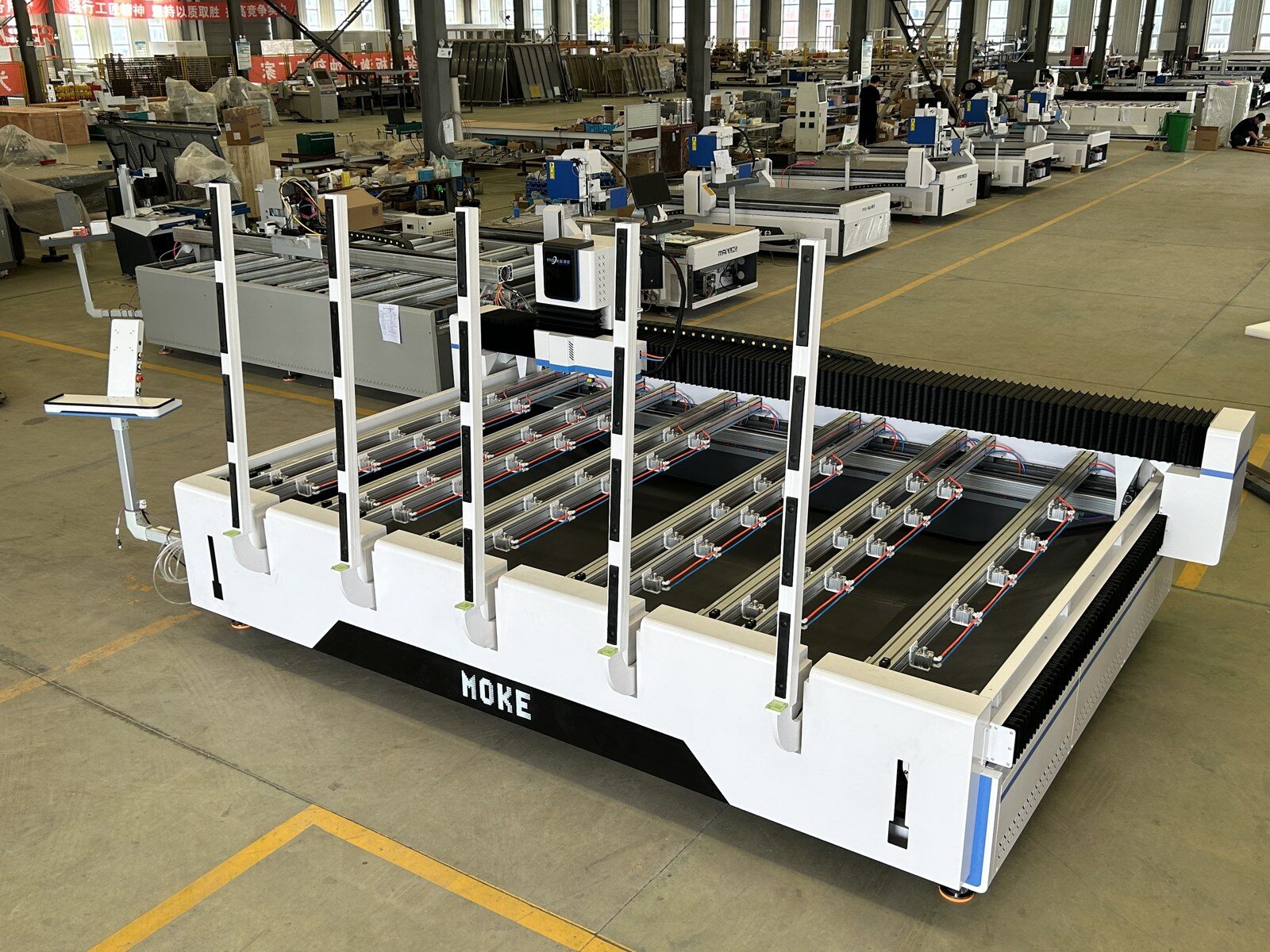

The pneumatic loading arm tilts the glass from the rack onto the worktable. Cylinder lift pins then raise the sheet so that a single operator can slide it into position: no crane, less handling and less risk of breakage.
How it works
- 1
Tilt onto the table
The pneumatic arms lower the sheet onto the worktable.
- 2
Lift pins raise
Cylinder lift pins raise the glass off the table.
- 3
Position and process
One operator slides the sheet into place; the laser starts.
Safer
Operators no longer lift large sheets by hand.
Faster
Loading and unloading take less time per sheet.
Fewer people
One operator can load and position the glass.
What makes the difference
Common solution compared with what MOKE uses.
Industrial-grade scan head

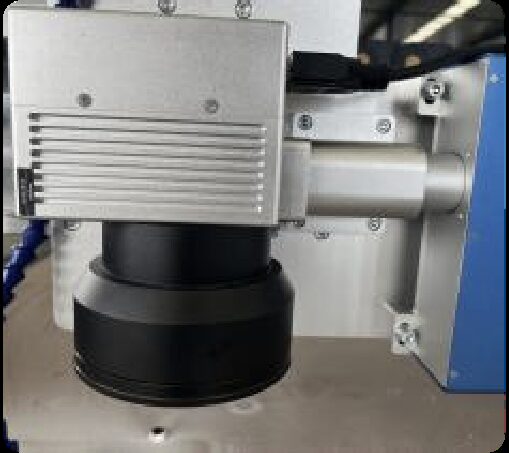

Rugged design for long shifts in a dusty workshop.
- Common solution
- Standard 2D head
- MOKE
- Industrial scan head
Side-mounted double guides

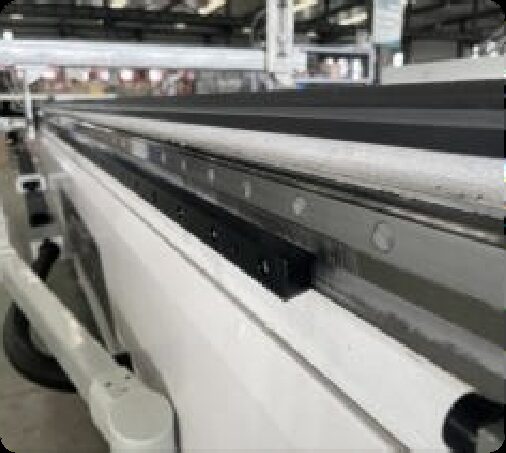

Smoother travel and higher engraving accuracy.
- Common solution
- Flat-mounted rail
- MOKE
- Side-mounted rails
Dual-temperature chiller
Two independent circuits for continuous daily operation.
- Common solution
- Single-circuit chiller
- MOKE
- Dual-temperature chiller
Servo motors with reducer

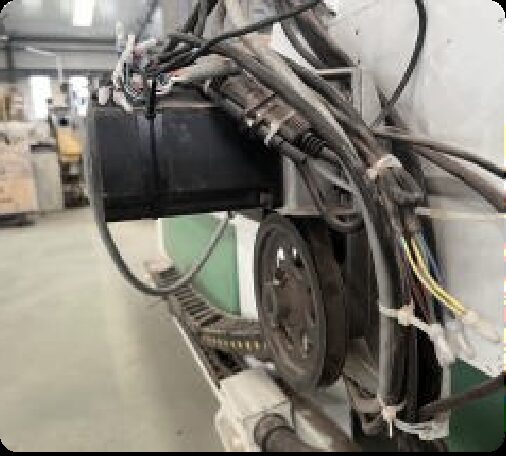

Higher angular accuracy than standard gear motors.
- Common solution
- Standard gear motor
- MOKE
- Servo with reducer
High-power 140 W laser
Less power attenuation and longer service life.
- Common solution
- Standard laser
- MOKE
- 140 W MOPA laser

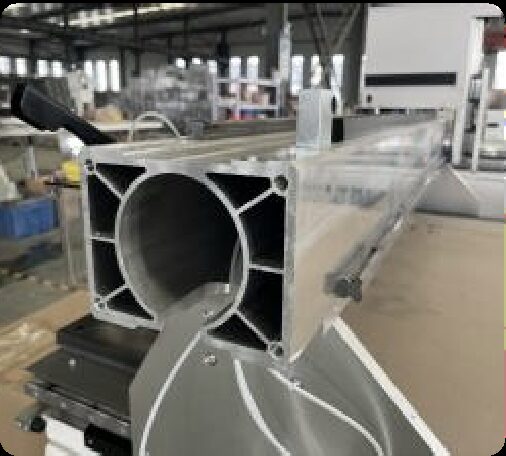

Aluminium beam, 5-axis frame
Rigid, low-deformation structure; flat, precise reference surfaces.
- Common solution
- Aluminium gantry beam
- MOKE
- 5-axis machined frame
Technical specifications
- Working size
- 1500 × 3000 mm
- Max. material thickness
- 50 mm
- Laser power
- 140 W MOPA fibre laser
- Engraving line speed
- ≤ 12,000 mm/s
- Sandblasting width per pass
- 160 mm
- Max. drilling field
- 150 × 150 mm
- Edge chipping
- < 400 µm (< 300 µm on small holes)
Machine
- Model
- CF1530 + loading arm
- Laser type
- Fibre laser
- Working size
- 1500 × 3000 × 50 mm
- Overall dimensions (L × W × H)
- 4900 × 3280 × 1700 mm
- Weight
- approx. 1400 kg
- Total power
- 4.5 kW
- Power supply
- AC 190–240 V, 50–60 Hz
- Working environment
- +5 to 35 °C, RH 30–60 %
Laser and accuracy
- Laser
- MOPA high-peak fibre laser
- Laser power
- 140 W (MOKE custom)
- Wavelength
- 1055–1070 nm
- Theoretical laser life
- approx. 80,000 h
- Marking range per pass
- 160 × 3000 mm
- Engraving line speed
- ≤ 12,000 mm/s
- Mechanical repeatability
- ≤ ± 0.25 mm
- Galvo repeatability
- ≤ ± 0.002 mm
System
- Control system
- Syntec 730SA-PLUS CNC control system (Taiwan)
- Motion
- Servo, dual drive, 4 motors
- Optics
- 12 mm-aperture galvo + telecentric lens
- Cooling
- Dual-temperature chiller
- Fume extraction
- High-pressure fan, direct duct
- Worktable
- Open grid, travelling extraction
- Loading
- Pneumatic arm + lift pins
Specifications may change with product improvements. Final values are confirmed in the quotation.
Main components
Proven brands for the parts that decide accuracy and uptime.
| Component | Brand or type | Advantage |
|---|---|---|
| Laser | 140 W MOPA, MOKE custom | Theoretical life approx. 80,000 h; even frosting, no edge burst |
| Galvo head | 12 mm-aperture custom galvo | About twice the service life of standard galvo heads |
| Field lens and beam expander | Telecentric field lens | Even spot over the whole field |
| Linear guides | AirTAC (Taiwan) | High hardness, high precision, dust-proof |
| Rack | 1.5-module, 1400 mm custom | High hardness, high precision |
| Control system | Syntec 730SA-PLUS CNC control system (Taiwan) | Adapts to round and rectangular jobs |
| Servo motors | Syntec (Taiwan) | Dual drive, 4 motors: 3 × 750 W + 1 × 400 W |
| Crossbeam | Industrial aluminium profile | Machined in a machining centre |
| Machine body | One-piece welded steel | Thermally aged, stays dimensionally stable |
| Electrical parts | Delixi / YUNSANDA | Switches, filters etc. |
| Cables | Special flexible cable | For continuous drag-chain movement |
| Computer | Industrial PC for laser machines | Pre-installed and tested |
| Lubrication | Manual oil injection | Oil does not stiffen at low temperatures; longer service life |
Dimensions and shipping

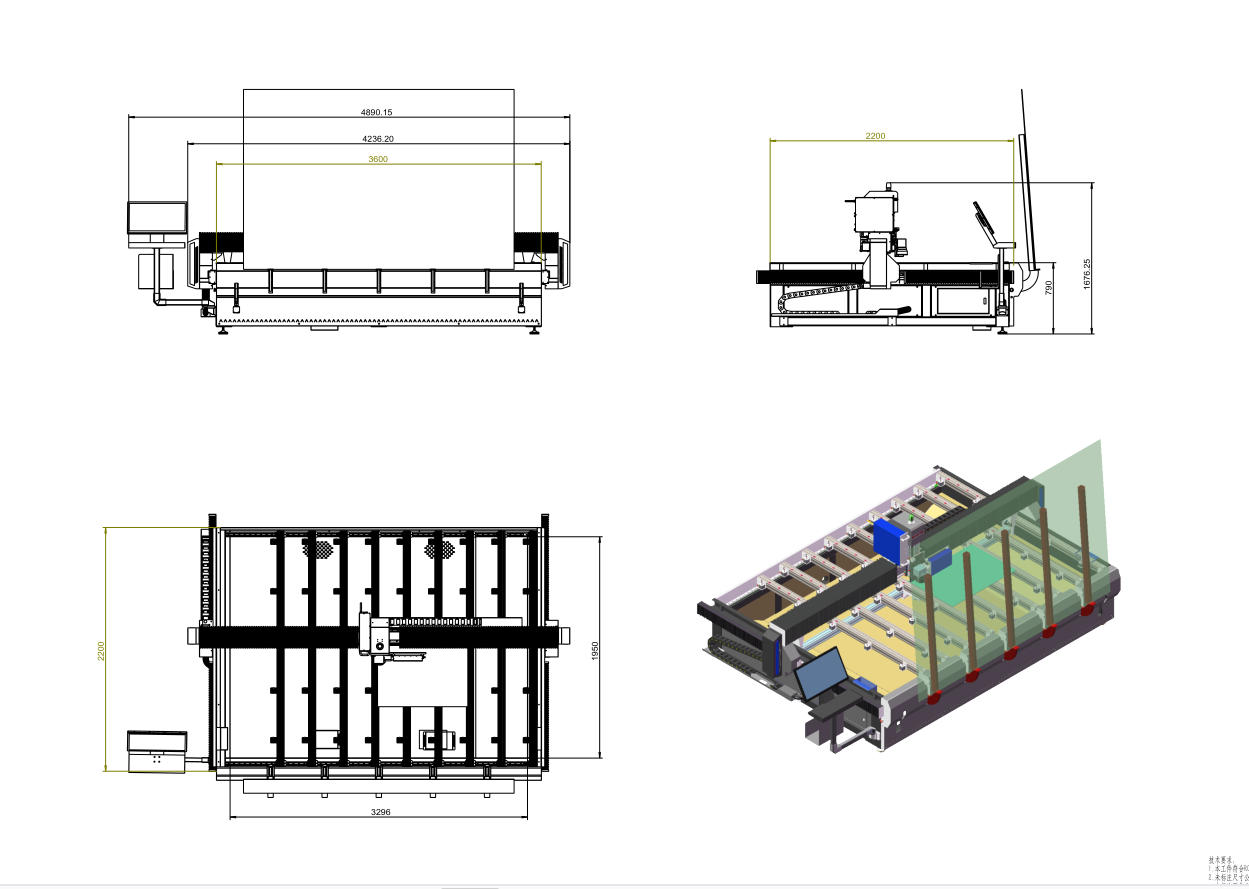

Overall dimensions 4900 × 3280 × 1700 mm. Plan the installation area with clearance for loading from the rack side.
Packing
- Packing size
- 4250 × 2250 × 1700 mm
- Volume
- approx. 16.3 m³
- Packages
- 1
- Gross weight
- approx. 1600 kg
Shipped fully assembled and tested; the loading arms are secured for transport. MOKE engineers support installation, commissioning and training.
