Robot Laser Drilling Line

One line. From raw sheet to clean, drilled glass

At a glance
Max. glass size 2500 × 1300 mm
Glass thickness 3–12 mm
Total line length approx. 17 m (2 lasers)
2–3 operators per shift

The line loads the glass with a multi-axis industrial robot, drills it with one or more fibre-laser drilling machines, washes and dries it, and unloads it automatically.

Two to three operators per shift run the whole line.

Request Quote
Plan view of the robot loading and unloading stations: a multi-axis industrial robot with vacuum gripper beside each roller table
    Plan view: loading station (left) and unloading station (right).

    Why customers choose this line

    Fully automatic flow

    Loading, positioning, drilling, washing, drying and unloading run as one synchronised sequence.

    Dry, non-contact drilling

    No drill bits, no cooling water at the laser, no tool changes. Round and special-shape holes from a DXF file.

    Clean glass at the outfeed

    Brush washing, three-stage spray and infrared drying. Glass leaves the line ready for the next process.

    Modular and expandable

    Add laser machines or adapt the module order to fit your workshop.

    Safe by design

    Class 1 enclosed laser, emergency stops along the line and anti-collision interlocks between stations.

    Supported on site

    MOKE engineers install, commission and train your team at your plant.

    Layout and process flow

    1. 1

      Robot loading

      A multi-axis industrial robot with a vacuum gripper picks the sheet from the rack and lays it on the infeed table.

    2. 2

      Positioning

      The transfer table aligns the sheet and feeds it into the laser machine.

    3. 3

      Laser drilling

      Secondary precision positioning, then the drilling program runs automatically.

    4. 4

      Washing & drying

      Brushes, three-stage spray and infrared ovens remove all dust and slurry.

    5. 5

      Positioning for unloading

      The outfeed transfer table aligns the clean sheet for unloading.

    6. 6

      Robot unloading

      A second industrial robot stacks the finished glass on the rack.

    The loading robot picks the next sheet from the rack.

    Dimensions

    DimensionValue
    Total line length (2 lasers)16997 mm
    Laser drilling machine length3560 mm
    Washing machine length3900 mm
    Washing chamber width1630 mm
    Outfeed transfer table length2800 mm
    Working (conveying) height900 mm · 910 mm at laser

    All dimensions in mm, for reference only. The final layout drawing is supplied with the quotation.

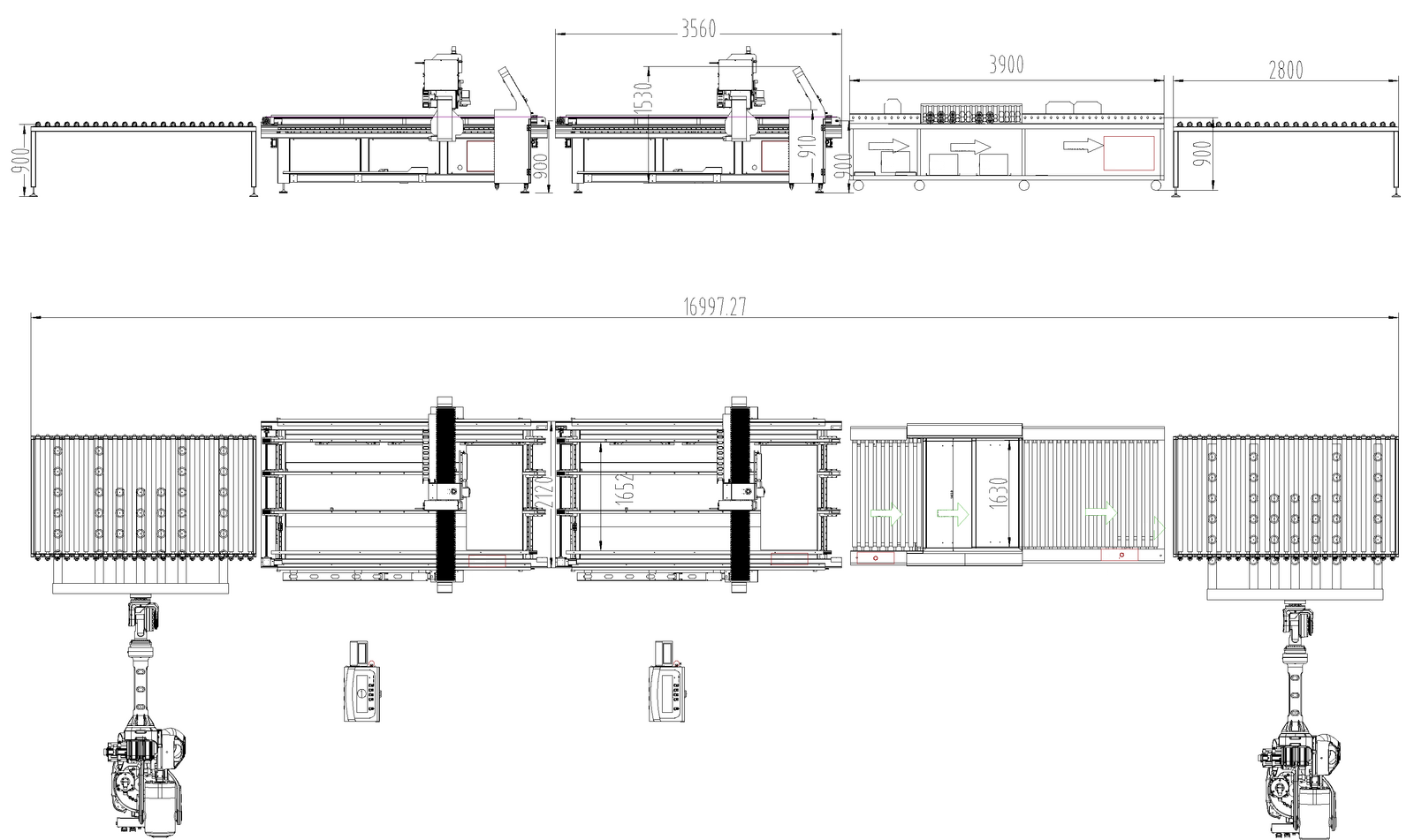

    Side view and plan view of the robot line: loading robot and table, two laser drilling machines, washer, and unloading table with robot
      Side view (top) and plan view (bottom) of a line with two laser drilling machines in series. Left to right: industrial robot + loading table, laser drilling machine 1, laser drilling machine 2, washing & drying, unloading table + industrial robot. The number of lasers can be matched to your output.

      On the drawing

      • Electrical cabinet (one per module)
      • Independent pre-spray
      • Two 340-type infrared drying ovens
      • Infeed · washing chamber · outfeed
      • Water tanks 1–3, cascade filtration
      • Glass flow direction, left to right

      Modules and specifications

      Module 1 · Industrial robot loading and unloading

      A multi-axis industrial robot stands at each end of the line. At the infeed it picks each raw sheet from the rack with a vacuum suction gripper and lays it flat on the roller table. At the outfeed the second robot takes the finished, dry sheet and stacks it on the rack. No manual lifting of glass.

      Robot stations

      Robots
      2 multi-axis industrial robots, one loading, one unloading
      Gripper
      Vacuum suction gripper
      Infeed / outfeed table
      Roller table, working height 900 mm
      Control
      Robot controller linked to the line PLC network
      Robot model, payload & reach
      Matched to your glass size and weight, confirmed in the quotation

      Less handling, fewer breakages

      The robots lift and place every sheet the same way, so operators no longer carry glass.

      Synchronised with the line

      The robot only places the next sheet when the station ahead is clear.

      Safe working zone

      The robot working area is fenced or protected with light curtains on site.

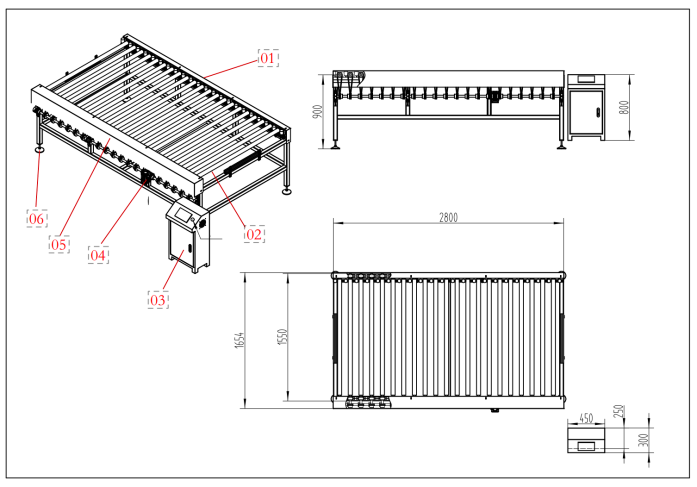

      Drawing of the CRTT2508 transfer table: perspective, side and plan views with the electrical cabinet
        Transfer table CRTT2508. Numbered parts in the drawing:
        1. 1Guard cover
        2. 2Conveying rollers
        3. 3Electrical cabinet
        4. 4Conveyor motor and gear reducer
        5. 5Guard
        6. 6Levelling feet

        Transfer tables · CRTT2508-S / -A

        Function
        Convey and edge-position the glass between stations
        Power
        1.5 kW · 220 V 50 Hz
        Dimensions
        2800 × 1500 × 900 mm
        Control
        Own PLC + HMI touch screen

        Module 2 · Laser drilling machine CRLC1830

        A pulsed fibre laser with a high-speed galvo scanner drills the glass without contact. The machine positions each sheet again on arrival, drills it and sends it on automatically.

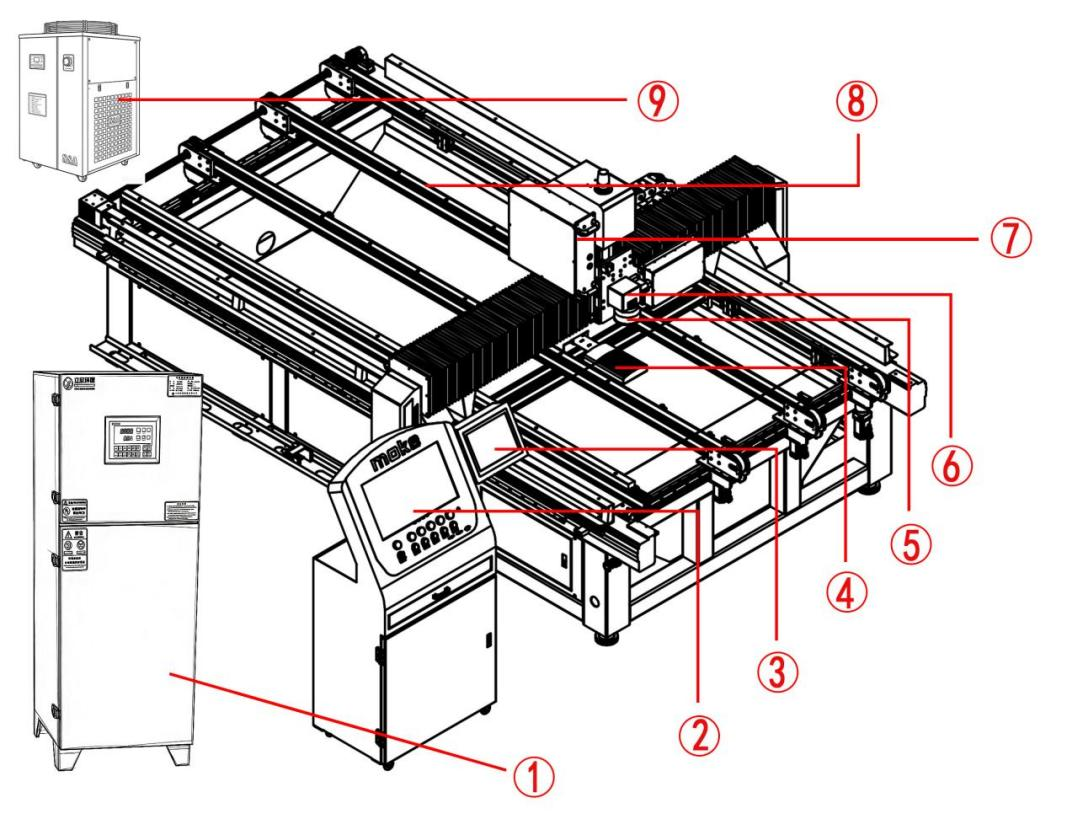

        Render of the CRLC1830 laser drilling machine with numbered callouts 1 to 9
          1. 1Dust collector
          2. 2Main control screen
          3. 3PLC control screen
          4. 4Vacuum suction unit
          5. 5F-theta lens
          6. 6Galvo scanner
          7. 7Laser source
          8. 8Conveyor belt
          9. 9Dual-circuit chiller

          Laser drilling machine · CRLC1830

          Laser
          Pulsed fibre, 1064 nm
          Working travel
          X 1300 · Y 2500 · Z 200 mm
          Scan speed
          up to 12000 mm/s
          Focal spot
          0.1–0.2 mm, adjustable
          Control
          Syntec CNC + PLC, Ethernet link to the line
          Cooling
          Industrial chiller, 25–28 °C
          Power
          ≤ 4.5 kW · 380 V 50 Hz, 3-phase
          Compressed air
          0.4–0.6 MPa
          Weight
          approx. 1200 kg
          Machine body
          2300 × 3000 × 1750 mm
          Overall incl. conveyor and cabinet
          3560 × 2436 × 1820 mm

          What it can do

          Drilling

          Round and special-shape holes, drawn on screen or imported as DXF.

          Cut-outs

          Slots, stars, sockets and other contours in the same program.

          Frosting & coating removal

          Sandblast effect and mirror back-paint removal (manual mode).

          Enclosed, dust-free

          Negative-pressure chamber; dust is extracted and filtered at source.

          Stable accuracy

          Stress-relieved welded steel frame, deformation ≤ 0.01 mm.

          Class 1 laser product

          Beam fully enclosed in a multi-layer metal housing during operation.

          Module 3 · Glass washing and drying machine CRWD2600C

          A horizontal washer removes glass dust and slurry after drilling, then dries the sheet completely, so it leaves the line clean and free of water marks.

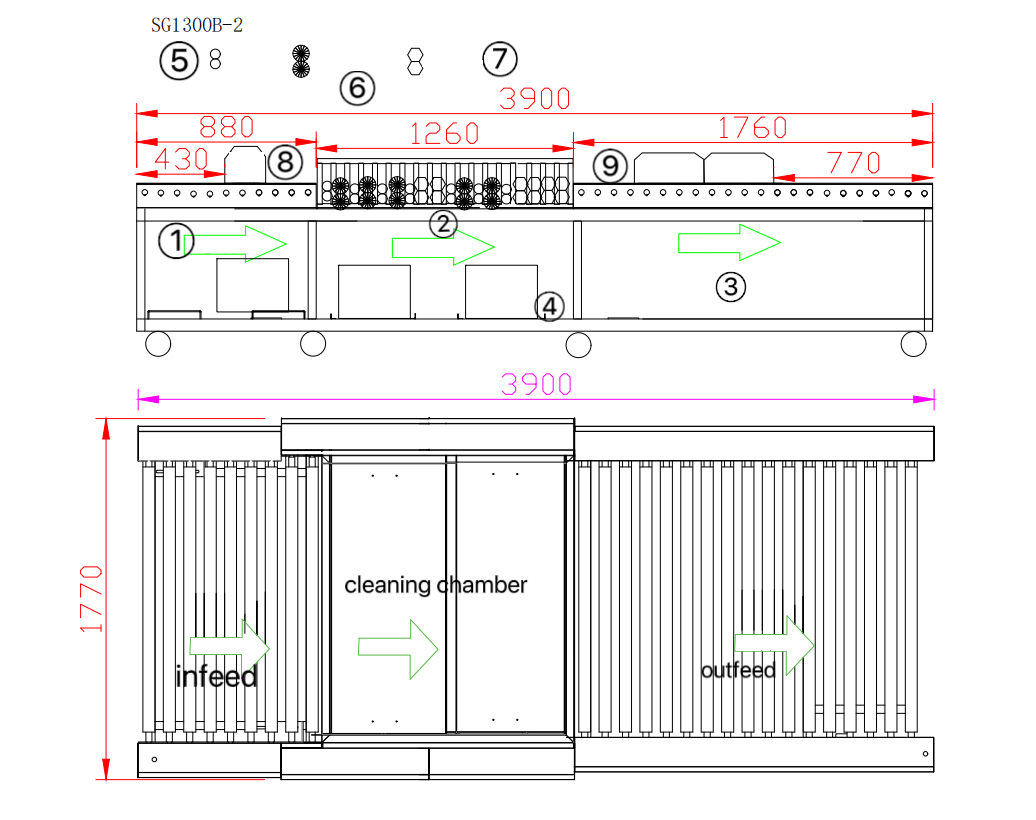

          Drawing of the CRWD2600C glass washing and drying machine
          1
          2
          1. 1Pre-spray
          2. 2IR ovens
          Glass washing and drying machine CRWD2600C: infeed, cleaning chamber with water tanks 1 to 3, two IR drying ovens, outfeed. Numbered parts: 5 rubber roller, 6 brush (Ø80 mm), 7 water-absorbing roller.

          Washing & drying machine · CRWD2600C

          Glass thickness
          2–12 mm
          Max. glass width
          1300 mm
          Conveying speed
          1–5 m/min, frequency controlled
          Washing
          5 pairs of nylon brushes + 3-stage spray
          Drying
          Two infrared ovens, 3 heating elements each
          Total power (incl. two IR ovens)
          40 kW · 380 V 50 Hz, 3-phase 5-wire
          Compressed air
          0.3–0.6 MPa
          Dimensions
          3900 × 1770 × 1020 mm

          Three-stage spray

          Pre-wash, main wash and pure-water rinse; neutral detergent can be used.

          Three-tank filtration

          Cascade tanks recycle the water and keep stages separate.

          Soft on glass

          Wear-resistant NBR rollers at 80 mm pitch and sponge rollers that absorb the water film.

          Simple utilities

          Tap-water inlet through a filter and one drain to your workshop system.

          Safety built into every station

          The line is designed and documented for CE marking. Guards, interlocks and emergency stops protect the operators during automatic production.

          Enclosed laser

          The 1064 nm laser runs inside a multi-layer metal housing. The complete machine meets Class 1 (safe in normal operation). Two pairs of laser safety goggles are supplied for service work.

          Emergency stops along the line

          Mushroom-head E-stops on the laser cabinets, the transfer tables, each robot station and at both ends of the washer.

          Interlocks between stations

          Photoelectric sensors and first-in-first-out queue logic stop the conveyor before sheets can collide.

          Robot working zone

          Each industrial robot works inside a fenced or light-curtain protected area. The fencing or light curtains are provided on site by the customer, to local regulations.

          Locked electrical cabinets

          All cabinets are locked with triangular keys; only qualified technicians can open them.

          Noise (at 1 m, full load)

          ModuleSound pressure level
          Laser drilling machine≤ 65 dB(A); 68–72 dB(A) with the dust collector running
          Transfer tables≤ 65 dB(A); short pneumatic exhaust (< 2 s)
          Washing machine≤ 72 dB(A); ear protection recommended for long stays nearby

          What your site needs to provide

          Each module has its own electrical cabinet. You bring power, compressed air and water to each cabinet; MOKE supplies a layout drawing with every connection point marked.

          Power (per module)

          ModuleSupplySupply rating (max.)Cable
          Transfer table220 V AC single-phase (L, N, PE), 50 Hz1.5 kW1.5 mm² Cu
          Laser drilling machine (each)380 V AC, 3-phase 5-wire5 kW2.5 mm² Cu
          Industrial robot station (each end)According to the robot model, confirmed in the quotation––
          Washing & drying machine380 V AC, 3-phase 5-wire40 kW16 mm² Cu

          Supply ratings are the maximum each feed must be sized for. Typical consumption is given on the module cards: laser drilling machine ≤ 4.5 kW, transfer table 1.5 kW.

          Compressed air

          Dry, oil-free, 0.4–0.6 MPa to each laser machine and to the robot vacuum grippers.

          Water

          Tap-water inlet through a mechanical filter, and a drain with a steady fall to the workshop drainage.

          Floor

          Flat, solid concrete without voids or expansion joints. Levelling ≤ 1 mm/m (washer ≤ 2 mm/m). Anti-vibration pads recommended.

          Cabling

          Main cables from your distribution board to each cabinet (trench or overhead tray) are by the customer.

          Module footprints

          ModuleL × W × H (mm)Weight
          Complete line (2 lasers)approx. 16997 long–
          Transfer table CRTT25082800 × 1500 × 900–
          Laser drilling machine CRLC1830 (each)3560 × 2436 × 1820 (overall incl. conveyor and cabinet)≈ 1200 kg
          Washing & drying machine CRWD2600C3900 × 1770 × 1020–

          Delivery, installation and support

          1. 1

            Delivered ready to place

            Every module ships as a complete, self-contained machine. No structural assembly on site; position with a forklift or crane.

          2. 2

            Installation & commissioning

            MOKE engineers come to your plant to align the line, check cabling and piping, and commission the complete system.

          3. 3

            Operator training

            Hands-on training for loading, laser programming (DXF import, hole set-up), washer operation and daily checks.

          4. 4

            Documentation

            Full operation manual, electrical and mechanical drawings, layout drawing with connection points.

          Options and configurations

          More laser machines

          Add laser drilling machines in series for higher output.

          Layout

          Module order and spacing adapted to your workshop.

          QR-code job loading

          Handheld scanner: scan the glass, the right program loads and starts automatically.

          Frosting & coating removal

          Use the same lasers for sandblast effects and mirror back-paint removal.

          Easy daily care

          WhenWhat
          DailyWipe sensors and laser lens; check chiller temperature (25–28 °C); flush washer tank 1 and empty the chip filter
          Weekly / monthlyCheck suction cups, brushes, sponge rollers and belts; clean filters; check air and water connections
          Spare partsRecommended spare-parts list for laser, washer and conveyors supplied with the line
          Send us your glass sizes, thicknesses and hole drawings. We will propose the right configuration and a layout for your workshop. Contact us

          Other configurations
